Laboratory 5

Calcolo numerico per la generazione di immagini fotorealistiche

Maurizio Tomasi maurizio.tomasi@unimi.it

Our Program

With the addition of last week’s features, we are ready to release the first version of our program!
Currently, the program converts a PFM file into an LDR file (PNG, JPEG, etc.)
We will therefore release version 0.1.0.

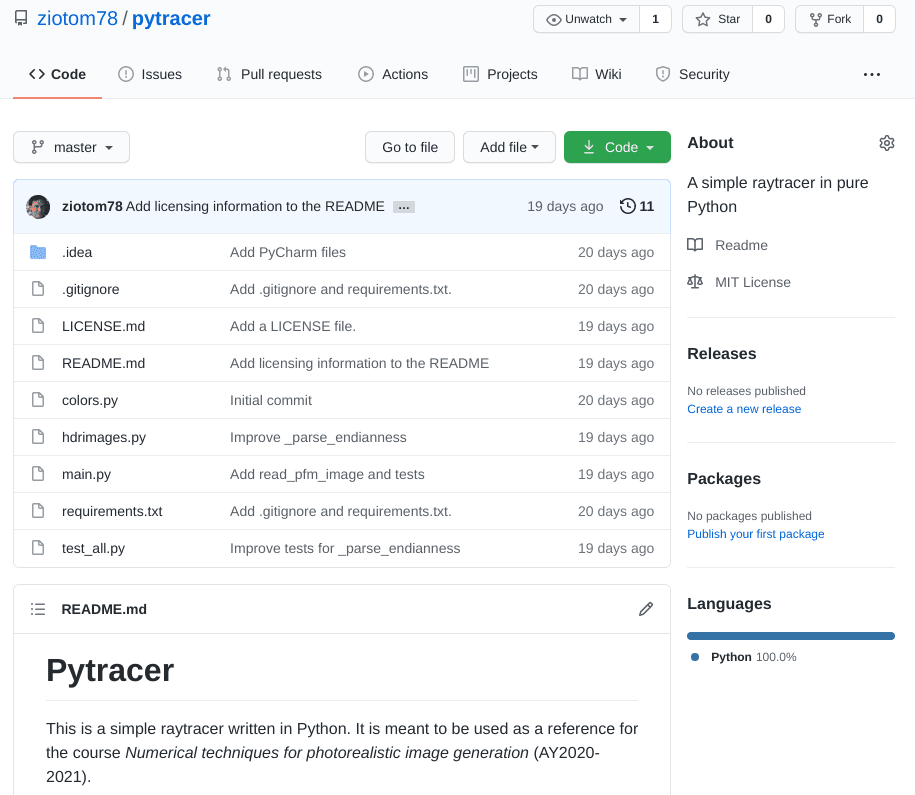

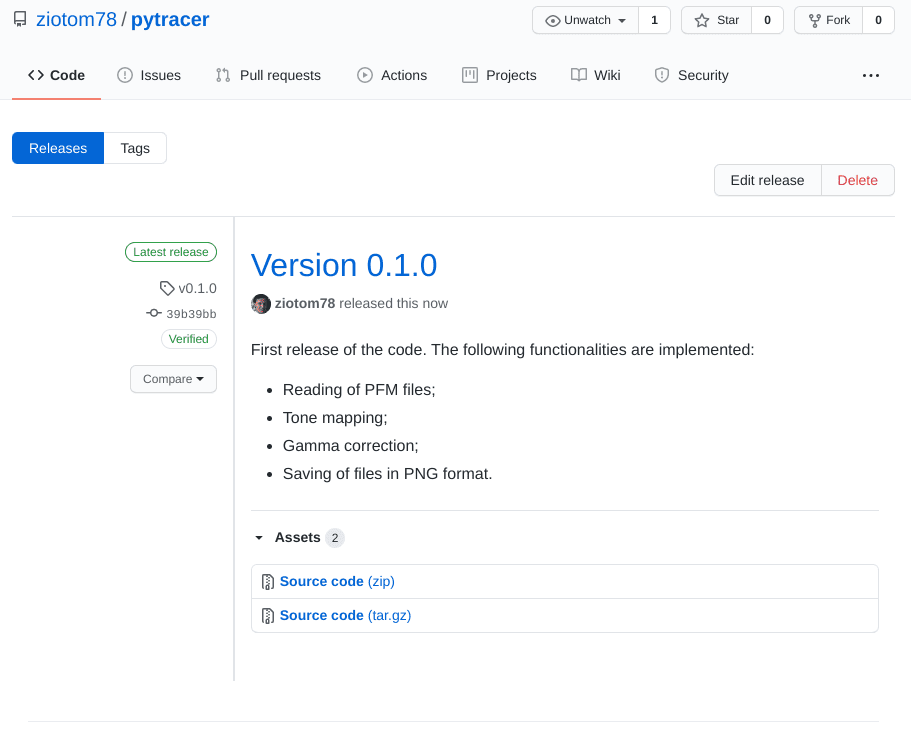

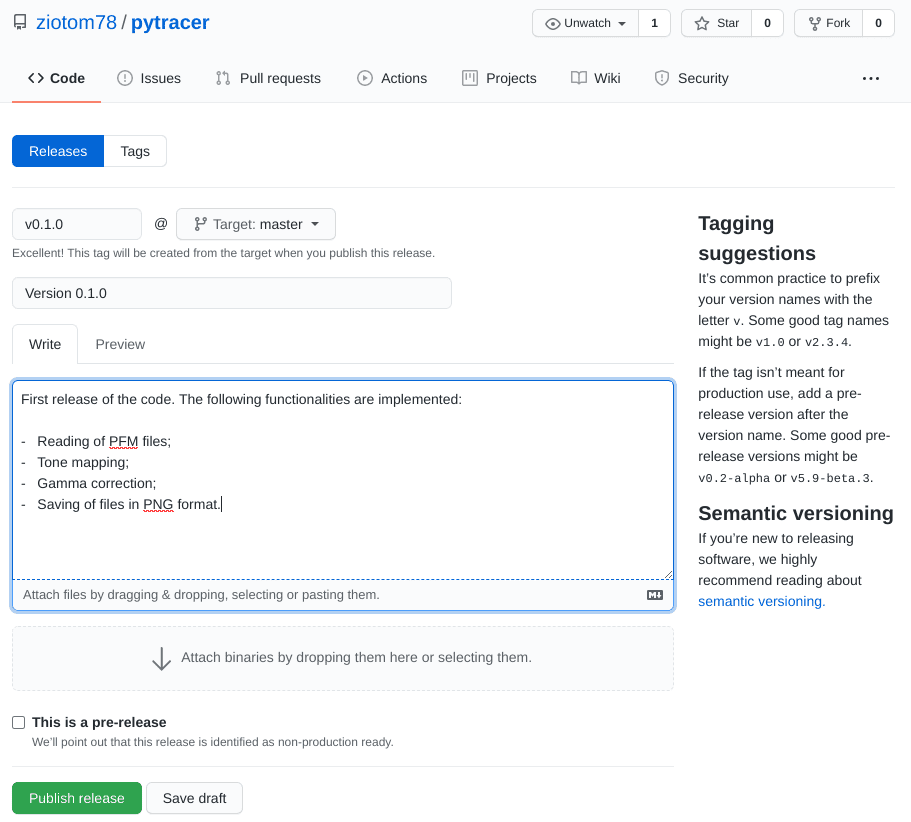

GitHub allows you to release versions through a specific feature.

Pull Requests

How Git Works

We have been using Git for a few weeks, and we should have learned how it works.
In particular, we have seen that Git saves every code change (the commit) by linking it to the previous modification:
Today we will see that this linear structure can actually be more complicated.

Complex Changes

In the previous lessons, we implemented the code to read and write PFM files.

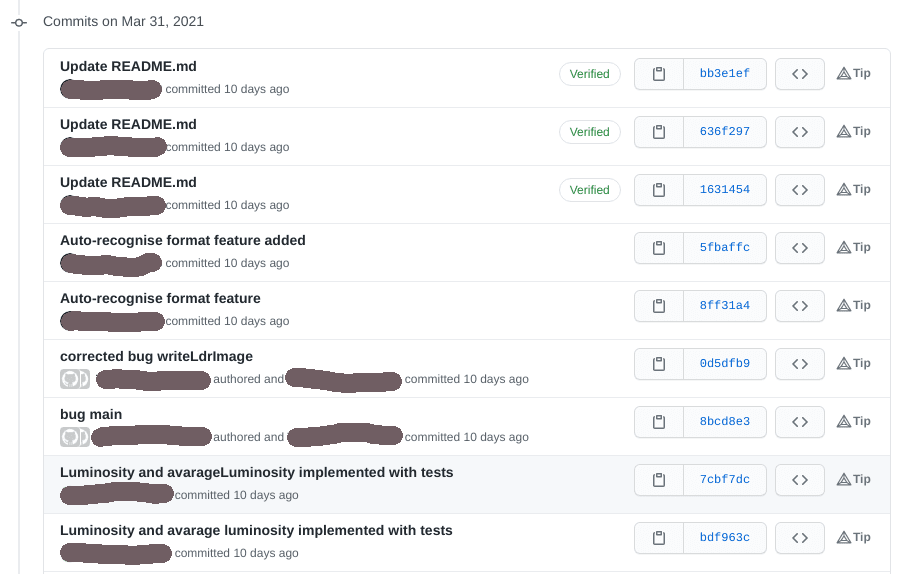

Each group implemented this functionality through a series of commits.
These commits were logically linked together, but this is not apparent when you open the commit page of any of your repositories (see the following slide).

Branches

Git implements the concept of a branch, which is a way to separate a sequence of commits from the main master “trunk”:
The git branch NAME command changes the active branch; git commit always adds to the end of this branch.
HEAD always points to the last commit of the active branch.

Branch Example

Branch Commands

git branch lists the available branches.
git branch -d NAME deletes a branch (ok if you already merged it).
git checkout -b NAME creates a new branch and makes it active.
git checkout NAME activates the already existing branch NAME.
git merge NAME1 NAME2 incorporates the changes from branch NAME1 into branch NAME2 (NAME1 → NAME2); usually NAME2 is master or main.
git fetch and git pull import all branches.

Branches in GitHub

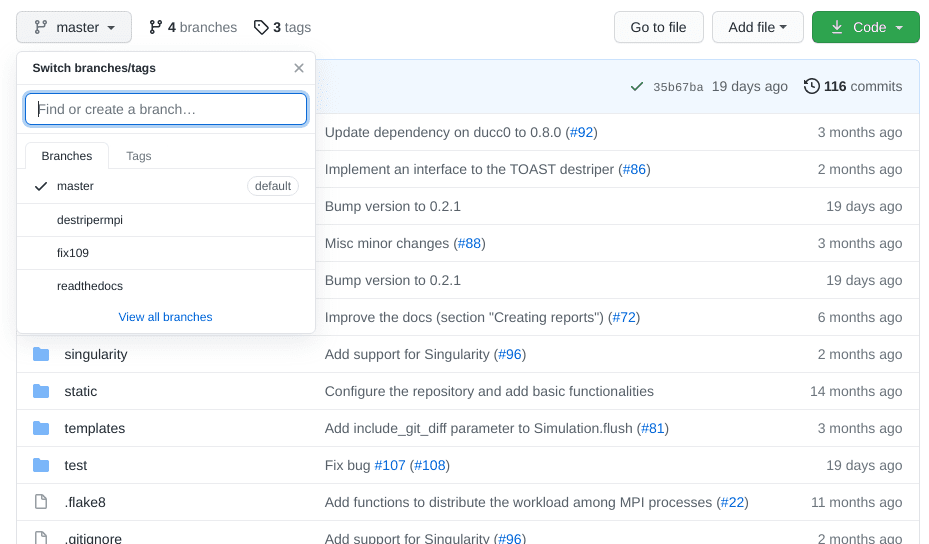

GitHub allows you to activate any branch in the browser through a dedicated button:
The real power of branches, however, lies in pull requests.

Pull Requests in GitHub

A pull request is a request to execute a git merge command within master.
GitHub activates a forum for each pull request so that developers can comment on whether or not to perform the git merge.
When merging, it is possible (and recommended) to apply squashing, which consists of merging all commits into a single one.
Squashing is very useful for getting rid of the many commits with messages like “Small fixes”, “Oops I forgot to add this”, etc.

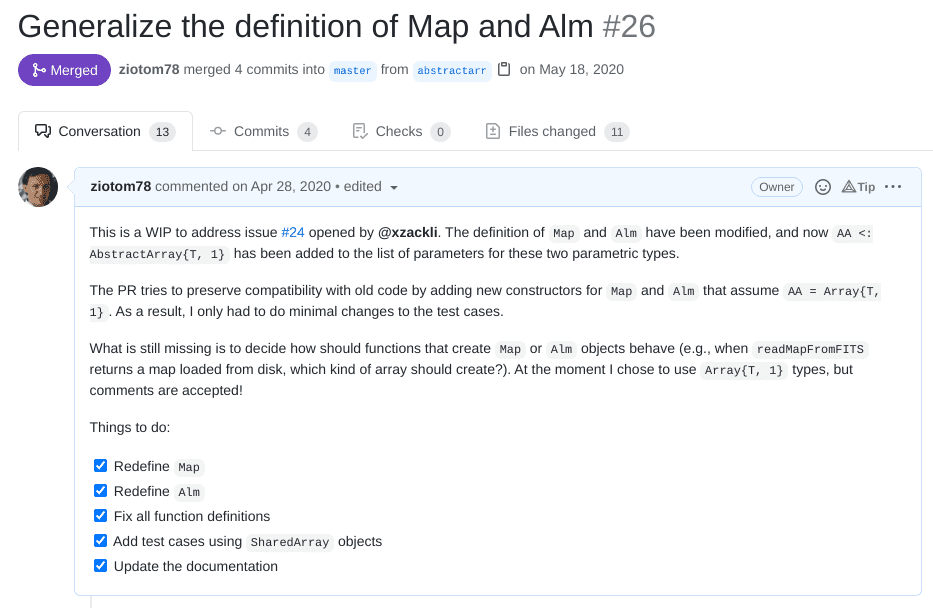

Pull Request Example

Checklists

In complex pull requests, you might plan to implement several different features with separate commits (highly recommended!)

The GitHub interface lets you to include checklists with this syntax:

-   [X] Add the feature
-   [ ] Implement tests
-   [ ] Update the documentation

To activate/deactivate items, just click on them; there is no need to modify the Markdown.

Checklists

How to Use Them in Practice

If one of you creates a pull request on GitHub, others can add commits to that pull request with the commands
```
git fetch
git checkout PULL_REQUEST_NAME
```
as if it were a branch they created themselves (git fetch downloads all new branches from GitHub, including pull requests).
Pull requests are one of the fundamental features of GitHub!
Get used to using them for every “serious” modification of your code.
In job interviews, they often ask to see some of your PRs!

What to do today

Start by “releasing” the 0.1.0 release of what you have written so far, and send the link of the GitHub repository to maurizio.tomasi@unimi.it
One of you should create a new pull request called geometry, and the others should invoke git fetch followed by git checkout geometry.
In the geometry branch, implement these types (following Chapter 2 of Pharr, Jakobs & Humphreys):
1. Vec (a three-dimensional vector).
2. Point (a three-dimensional point).
3. Normal (a normal vector).
4. Transformation (a 4×4 matrix and its inverse).

Why Three Types?

It might seem silly to have to define three types Vec, Point, Normal: after all, their structures are identical!

// C++ code
struct Vec { float x, y, z; };
struct Point { float x, y, z; };
struct Normal { float x, y, z; };

In some ray-tracers, in fact, a single Vec type is used to encode vectors, points, and normals (and even RGB colors!), but the use of distinct types will make our code more robust and clear.

Methods for `Vec`

Conversion to string, e.g., Vec(x=0.4, y=1.3, z=0.7);
Comparison between vectors (for tests), using functions like are_close;
Sum and difference between vectors;
Product by a scalar and negation (Vec.neg() returns -v);
Dot product between two vectors and cross product;
Calculation of \left\|v\right\|^2 (squared_norm) and of \left\|v\right\| (norm);
Function that normalizes the vector: v \rightarrow v / \left\|v\right\|;
Function that converts a Vec into a Normal.

Refer to the tests in the pytracer project (file test_all.py).

Methods for `Point`

Conversion to string, e.g., Point(x=0.4, y=1.3, z=0.7);
Comparison between points (for tests);
Sum between Point and Vec, returning a Point;
Difference between two Points, returning a Vec;
Difference between Point and Vec, returning a Point;
Conversion from Point to Vec (Point.to_vec()).

Refer to the tests in the pytracer project (file test_all.py).

Methods for `Normal`

Conversion to string, e.g., Normal(x=0.4, y=1.3, z=0.7);
Comparison between normals (for tests);
Negation of a normal (-\vec n);
Multiplication by a scalar;
Dot product Vec·Normal and cross product Vec×Normal and Normal×Normal;
Calculation of \left\|n\right\|^2 (squared_norm) and of \left\|n\right\| (norm);
Function that normalizes the normal: n \rightarrow n / \left\|n\right\|.

Refer to the tests in the pytracer project (file test_all.py).

Python Implementation

I will now briefly show how to implement the mathematical operations on Point, Vec and Normal.
Be careful though: Python is a dynamic language, and allows you to do things that are not directly translatable into other languages.
This is evident in the implementation of methods that are very similar between Point and Vec, like the sum of two elements:
1. Point + Vec → Point;
2. Vec + Vec → Vec.
You can refer to the complete code of pytracer (which we will also use in the coming weeks).

Python Implementation

def _are_xyz_close(a, b):   # No need to tell if it's a Point, Vec, Normal…
    # This works thanks to Python's duck typing. In C++ and other languages
    # you should probably rely on function templates or similar tools
    return are_close(a.x, b.x) and are_close(a.y, b.y) and are_close(a.z, b.z)

def _add_xyz(a, b, return_type):
    # Ditto
    return return_type(a.x + b.x, a.y + b.y, a.z + b.z)

def _sub_xyz(a, b, return_type):
    # Ditto
    return return_type(a.x - b.x, a.y - b.y, a.z - b.z)

Python Implementation

@dataclass
class Vec:
    x: float = 0.0
    y: float = 0.0
    z: float = 0.0

    def is_close(self, other, epsilon=1e-5):
        """Return True if the object and 'other' have roughly the same direction and orientation"""
        assert isinstance(other, Vec)
        return _are_xyz_close(self, other, epsilon=epsilon)

    def __add__(self, other):
        """Sum two vectors, or one vector and one point"""
        if isinstance(other, Vec):
            return _add_xyz(self, other, Vec)
        elif isinstance(other, Point):
            return _add_xyz(self, other, Point)
        else:
            raise TypeError(f"Unable to run Vec.__add__ on a {type(self)} and a {type(other)}.")
        return _add_xyz(self, other, Vec)

Other operations on `Vec`

def dot(self, other):
    return self.x * other.x + self.y * other.y + self.z * other.z

def squared_norm(self):
    return self.x ** 2 + self.y ** 2 + self.z ** 2

def norm(self):
    return math.sqrt(self.squared_norm())

def cross(self, other):
    return Vec(x=self.y * other.z - self.z * other.y,
               y=self.z * other.x - self.x * other.z,
               z=self.x * other.y - self.y * other.x)

def normalize(self):
    norm = self.norm()
    x /= norm
    y /= norm
    z /= norm

Transformations

We also need to implement the Transformation type, which encodes a transformation.
We will only consider translations, rotations around the three coordinate axes, and scaling transformations: this will greatly simplify our work!
Transformations can be applied to three mathematical objects:
1. Points (objects of type Point);
2. Vectors (objects of type Vec);
3. Normals (objects of type Normal).

The `Transformation` Type

It is often necessary to have both the matrix M (which implements the transformation) and its inverse M^{-1} readily available.

Our Transformation type will therefore need to store both matrices:

class Transformation:
    def __init__(self, m=IDENTITY_MATR4x4, invm=IDENTITY_MATR4x4):
        self.m = m
        self.invm = invm

where IDENTITY_MATR4x4 is a constant equal to the 4×4 identity matrix.

Consistency

Obviously, the fact that we have to pass both M and M^{-1} poses a consistency problem! How do we know that the two constructor parameters are correct?
We implement a method that verifies that the product of the two matrices yields the 4×4 identity matrix (useful in tests!):
```
def is_consistent(self):
    prod = _matr_prod(self.m, self.invm)
    return _are_matr_close(prod, IDENTITY_MATR4x4)
```
where _matr_prod and _are_matr_close are simple methods that operate on 4×4 matrices.

Standard Transformations

We define a series of functions that construct Transformation objects, taking care to correctly initialize M and M^{-1}.

For example, this is the implementation of translation (translation by a vector \vec v):

def translation(vec: Vec):
    # We are adopting the dumbest solution here. In your code,
    # it might be more convenient (and efficient) to define a
    # HomMatrix class instead of using explicit matrices…
    return Transformation(
        m=[[1.0, 0.0, 0.0, vec.x],
           [0.0, 1.0, 0.0, vec.y],
           [0.0, 0.0, 1.0, vec.z],
           [0.0, 0.0, 0.0, 1.0]],
        invm=[[1.0, 0.0, 0.0, -vec.x],
              [0.0, 1.0, 0.0, -vec.y],
              [0.0, 0.0, 1.0, -vec.z],
              [0.0, 0.0, 0.0, 1.0]],
    )

Inverse

We will see that it is often necessary to access the inverse of a transformation.

Fortunately, since we store both M and M^{-1}, this task is very easy:

class Transformation:
    # …
    def inverse(self):
        # That was easy!
        return Transformation(m=self.invm, invm=self.m)

Products

It is particularly critical to implement the functions to apply a transformation to a geometric object!
It will be necessary to implement the product operators on the Point, Vec, Normal types:
1. Transformation * Transformation → Transformation; when calculating invm, remember that (AB)^{-1} = B^{-1}A^{-1}.
2. Transformation * Point → Point.
3. Transformation * Vec → Vec.
4. Transformation * Normal → Normal.

Points and Vectors

The difference between points and vectors lies in the last coefficient of the representation:

P = \begin{pmatrix} p_x\\ p_y\\ p_z\\ 1 \end{pmatrix}, \vec v = \begin{pmatrix} v_x\\ v_y\\ v_z\\ 0 \end{pmatrix}.
From a code perspective, it is better to implement two distinct functions for the product: the one for vectors can save iterating over the last column of the matrices M and M^{-1}.

Transformation of a Point

row0, row1, row2, row3 = self.m
newp = Point(x=p.x * row0[0] + p.y * row0[1] + p.z * row0[2] + row0[3],
             y=p.x * row1[0] + p.y * row1[1] + p.z * row1[2] + row1[3],
             z=p.x * row2[0] + p.y * row2[1] + p.z * row2[2] + row2[3])
w = p.x * row3[0] + p.y * row3[1] + p.z * row3[2] + row3[3]

if w == 1.0:
    return newp   # Avoid three (potentially costly) divisions if not needed
else:
    return Point(newp.x / w, newp.y / w, newp.z / w)

Normalization

In the case where the last coefficient of the result is not equal to 1, it is necessary to normalize the other terms:

\begin{pmatrix} p_x\\ p_y\\ p_z\\ \lambda \end{pmatrix} \rightarrow \begin{pmatrix} p_x / \lambda\\ p_y / \lambda\\ p_z / \lambda\\ 1 \end{pmatrix}
(None of the transformations we implement lead to \lambda \not= 1, but more general transformations can: implementing this normalization in our code makes it future-proof).

Normals

We said that we also need to implement Normal, which has the same structure as Vec but will require fewer operations:
```
@dataclass
class Normal:
    x: float = 0.0
    y: float = 0.0
    z: float = 0.0
```
A transformation applied to a normal is identical to the application to a vector, but we must use the transpose of the inverse. Let’s see how to do the calculation.

Inverse Transpose

The homogeneous matrix M can be represented in block form:

M = \begin{pmatrix} \textcolor{#3434AD}{A}& \textcolor{#34AD34}{\vec v}\\ \mathbf{0}& 1, \end{pmatrix}

where \textcolor{#3434AD}{A} is a 3×3 matrix.
It can be easily shown that the inverse of a homogeneous matrix is still a homogeneous matrix.

Inverse Transpose

The transpose of a homogeneous matrix, however, is no longer homogeneous, because non-zero values appear in the last row:

M^t = \begin{pmatrix} \textcolor{#3434AD}{m_{11}}& \textcolor{#3434AD}{m_{21}}& \textcolor{#3434AD}{m_{31}}& 0\\ \textcolor{#3434AD}{m_{12}}& \textcolor{#3434AD}{m_{22}}& \textcolor{#3434AD}{m_{32}}& 0\\ \textcolor{#3434AD}{m_{13}}& \textcolor{#3434AD}{m_{23}}& \textcolor{#3434AD}{m_{33}}& 0\\ \textcolor{#34AD34}{v_1}& \textcolor{#34AD34}{v_2}& \textcolor{#34AD34}{v_3}& 1\\ \end{pmatrix}.
By explicitly calculating the product between the inverse transpose and a vector, we see that the last (homogeneous) coefficient is no longer 0!
However, this does not affect \hat n' (n[3] == 0): we can therefore ignore the problem.

Implementation

It is useless to construct the transposed matrix of self.invm and calculate the product of this with the normal.

I suggest you implement the product between matrix and normal in the most direct way possible:

row0, row1, row2, _ = self.invm  # Take the *inverse*!

# This multiplies the *transpose* of `self.invm` by `n`
return Normal(x=n.x * row0[0] + n.y * row1[0] + n.z * row2[0],
              y=n.x * row0[1] + n.y * row1[1] + n.z * row2[1],
              z=n.x * row0[2] + n.y * row1[2] + n.z * row2[2])

Matrices and Transformations

It may be useful to define a HomMatrix type that implements a 4×4 homogeneous matrix along with basic operations on it.
The Transformation type will then contain two HomMatrix fields, containing the transformation matrix and its inverse, respectively.
Be careful to define HomMatrix in a way that avoids memory allocation on the heap, because it needs to be fast to allocate:
1. Avoid using constructs like vector<vector<float>> (C++), as data would be in the heap and not contiguous in memory.
2. In fact, avoid vector (C++) and similar constructs altogether and define a simple array of 16 elements.

Tests

The complete set of tests is in the pytracer repository, in the file test_all.py.
Implement the same tests present in that file.

Teamwork

One of you creates the 0.1.0 release;
One of you creates a geometry branch and makes a pull request, which the others download;
Split the work among your co-workers. You need to implement the types Vec (without methods or operators!), Point, Normal, HomMatrix.
Synchronize with each other by doing a merge;
Divide the implementation of the various methods and operators among yourselves, and then implement Transformation.

Hints for C++

Type definitions

It’s crucial that Vec and Point be efficient!
Don’t worry to define classes with methods like GetX/SetX: just define Vec and Point as plain struct, or class with public members x, y, z.
Define most (all?) of the methods as inline by declaring them in the .h file. This gives the C++ compiler many chances to optimize the code.

Not-recommended solution!

class Vec {
    // These are "private" members (the default visibility in "class")
    float x, y, z;  // You can use "double", if you wish

public:
    Vec(float _x = 0, float _y = 0, float _z = 0) : x{_x}, y{_y}, z{_z} {}
    Vec(const Vec &); // Copy constructor; here it’s useless!
    Vec(const Vec &&); // Move constructor; ditto!

    float getx() const { return x; }
    void setx(float _x) { x = _x; }
    // Etc.
};

Avoiding repetitions

You can use C++ templates to avoid defining over and over the same operations on Point and Vec types.

This example shows how to apply the technique to the sum of two elements:

// Generic operation `In1 + In2 → Out`. This template…
template <typename In1, typename In2, typename Out>
Out _sum(const In1 &a, const In2 &b) {
  return Out{a.x + b.x, a.y + b.y, a.z + b.z};
}

Point operator+(const Point &a, const Vec &b) {
  return _sum<Point, Vec, Point>(a, b);   // …is used here…
}

Vec operator+(const Vec &a, const Vec &b) {
  return _sum<Vec, Vec, Vec>(a, b);       // …and here
}

Hints for C#

Type Definition

Since Vec, Point, Normal and Transformation will be heavily used in calculations, it is important that they be extremely efficient classes.
This is therefore a case where it is better to define the types as value types using struct instead of class.
Unfortunately, C# does not support metaprogramming, so you will have to define common operations like additions multiple times

Hints for Julia

Type definitions

To define the Vec and Point types you might think that StaticArrays.jl is perfect. It’s a very efficient library, but I don’t recommend using it in this case.
The problem with StaticArrays.jl is that it doesn’t allow you to exploit multiple dispatch: Vec and Point would be seen by Julia as the same type SVector{3, Float32}.
It’s better to define two new types with struct
I recommend omitting mutable: you will encourage Julia to use them as value types instead of reference types.

Guidelines for D/Nim/Rust

Type Definitions

You can draw inspiration from the implementations in the document A comparison between a few programming languages.
This could be a good opportunity to reduce code duplication by leveraging the metaprogramming capabilities of your language…
…but if you find it difficult to use them, don’t go crazy and just use duplicated code! (In the future, when you have studied the LISP language well, you can fix it 😀)
I’ll show an example with Nim: similar results can be achieved with Rust and D.

Defining Types with Nim

We want to implement a series of operations on Vec, Point, Normal.

Nim supports operator overloading, so we could write:

proc `+`(a: Point, b: Vec): Point =   # Point + Vec → Point
  result.x = a.x + b.x
  result.y = a.y + b.y
  result.z = a.z + b.z

proc `+`(a: Vec, b: Vec): Vec =        # Vec + Vec → Vec
  # The implementation is the same as above!
  result.x = a.x + b.x
  result.y = a.y + b.y
  result.z = a.z + b.z

but this is very tedious!

Metaprogramming

To avoid repetition in the definition of +, we can use metaprogramming, which is code that is not executed when the program is launched, but while the program is being compiled.
Nim supports three different constructs that implement metaprogramming:
1. Generic functions;
2. Templates;
3. Macros.
Let’s see what they consist of: this way you can then search the documentation of your language to see if similar paradigms are supported.

Generic Functions

A generic function does not specify a precise type for its data.

It is useful when the operations you want to perform need to be adaptable to any type (like template functions in C++):

proc mysum[T](a: T, b: T): T =
  result = a + a + b   # A really weird type of “sum”: result = 2a + b

echo mysum(1, 2)       # Works on integers…
echo mysum(0x1, 0x2)   # …and on unsigned integers…
echo mysum(1.0, 2.0)   # …and on floats!

It is not suitable in our case, because we want to specify constraints on T (for example, you cannot add two points together!).

Templates

A template is a piece of code where some parts are not specified and can be substituted later as needed.

Here is an example:

template define_double_proc(fname: untyped, t: typedesc) =
  proc fname(arg: t): t =
    result = arg + arg

define_double_proc(double_int, int)
define_double_proc(double_float32, float32)

I have defined two new functions, double_int and double_float32, but I have not specified an equivalent for float32 or for uint.

Macros

A macro is a sequence of instructions that generate code piece by piece.
It is the most sophisticated metaprogramming paradigm available in Nim.
It can be used to do amazing things (for example, modify the language to support more OOP constructs).
However, I advise you to be careful, because it is difficult to debug macros, and the generated code can be unreadable.
A good way to understand how to use macros is to first practice with a LISP language (Racket, Clojure, Scheme…).

Templates in Nim

What we need to quickly define mathematical operations on multiple types are obviously templates:

template define_sum(type1: typedesc, type2: typedesc, rettype: typedesc) =
  proc `+`*(a: type1, b: type2): rettype =
    result.x = a.x + b.x
    result.y = a.y + b.y
    result.z = a.z + b.z

define_sum(Vec, Vec, Vec)
define_sum(Vec, Point, Point)
define_sum(Point, Vec, Point)
define_sum(Normal, Normal, Normal)

Templates in Nim (2/2)

We can go further and make the approach extensible to the type of operation as well, so that the template can also be used for subtraction:

template define_3dop(fname: untyped, type1: typedesc, type2: typedesc, rettype: typedesc) =
  proc fname*(a: type1, b: type2): rettype =
    result.x = fname(a.x, b.x)  # This works because "a + b" is interpreted as `+`(a, b)
    result.y = fname(a.y, b.y)
    result.z = fname(a.z, b.z)

define_3dop(`+`, Vec, Vec, Vec)
define_3dop(`-`, Vec, Vec, Vec)
define_3dop(`+`, Vec, Point, Point)
define_3dop(`+`, Point, Vec, Point)
define_3dop(`-`, Point, Vec, Point)
define_3dop(`+`, Normal, Normal, Normal)
define_3dop(`-`, Normal, Normal, Normal)

Templates in D

D provides mixin template, which can be exploited to avoid duplications in several methods of Vec, Point, and Normal:

mixin template defSumDiff(T, Ret) {
  Ret opBinary(string op)(T other) const
       if (op == "+" || op == "-") {
      // This is a string mixin, so that we can handle both + and - in the same code
      return mixin("Ret(x " ~ op ~ " other.x, y " ~ op ~ "other.y, z " ~ op ~ " other.z)");
  }
}

struct Vec {
  float x, y, z;
  mixin defSumDiff!(Vec, Vec);
}

struct Point {
  float x, y, z;
  mixin defSumDiff!(Vec, Point);
}

Templates in Rust?

Unfortunately, Rust does not have anything equivalent to Nim’s templates and D’s mixins. You must use macros!

Do not try to be too smart trying to combine Add and Sub!

macro_rules! implement_sum(
    ($type1:ty, $type2:ty, $return_type:tt) => {
        impl ops::Add<$type2> for $type1 {
            type Output = $return_type;

            fn add(self: $type1, other: $type2) -> $return_type {
                let result = $return_type{x: self.x + other.x, y: self.y + other.y, z: self.z + other.z};
                result
            }
        }
    }
);

implement_sum!(Vec, Vec, Vec);
implement_sum!(Point, Vec, Point);

Laboratory 5

Our Program

Pull Requests

How Git Works

Complex Changes

Branches

Branch Example

Branch Commands

Branches in GitHub

Pull Requests in GitHub

Pull Request Example

Checklists

Checklists

How to Use Them in Practice

What to do today

What to do today

Why Three Types?

Methods for Vec

Methods for Point

Methods for Normal

Python Implementation

Python Implementation

Python Implementation

Other operations on Vec

Transformations

The Transformation Type

Consistency

Standard Transformations

Inverse

Products

Points and Vectors

Transformation of a Point

Normalization

Normals

Inverse Transpose

Inverse Transpose

Implementation

Matrices and Transformations

Tests

Teamwork

Hints for C++

Type definitions

Not-recommended solution!

Recommended solution

Avoiding repetitions

Hints for C#

Type Definition

Hints for Julia

Type definitions

Guidelines for D/Nim/Rust

Type Definitions

Defining Types with Nim

Metaprogramming

Generic Functions

Templates

Macros

Templates in Nim

Templates in Nim (2/2)

Templates in D

Templates in Rust?

Methods for `Vec`

Methods for `Point`

Methods for `Normal`

Other operations on `Vec`

The `Transformation` Type
