Miscellanea

• Communicate to the teacher by next week the composition of your group and the chosen language

• The exercises end at 12:30, but if you complete the work early you can leave earlier

Project management

Overview

• In this course we will develop a complex program to generate photorealistic images;

• Managing complex programs requires a series of measures:

  • Automatic code quality checks

  • Change monitoring

  • Code visibility to other users

  • Access to documentation

How have you managed your projects so far?

Version control systems

• A version control system (VCS) records changes made to the code;

• Possibility to undo changes;

• Release of “releases” (e.g., 1.0, 1.1, 1.2) with the possibility of retrieving older ones;

• Ensures that multiple programmers can modify the code simultaneously (with some caveats).

How to use a VCS

• A VCS manages a directory, with all its subdirectories;

• When creating/modifying a file within the directory, you ask the VCS to record the change;

• The VCS takes “snapshots” of the directory, which it saves in its own database.

Usage example

• I create a directory hello_world and a file hello_world/hello.py:

  print("Hello, wold!")

• I invoke the VCS to “save” a snapshot of the hello_world directory

• I modify the file hello_world/hello.py to correct the message:

  print("Hello, world!")

• I invoke the VCS again to “save” a new snapshot of the directory

Usage example

At the end of the example, the VCS database contains two snapshots:

1. File hello_world/hello.py with this content:

   print("Hello, wold!")

2. File hello_world/hello.py with this content:

   print("Hello, world!")

Commit

• Each snapshot is always associated by VCS with some additional information:

  • User who performed the snapshot
  • Date and time of the snapshot

• In VCS jargon, a snapshot is called a commit.

A simple VCS (1/3)

• We can create a simple VCS in UNIX using the Bash shell and two command-line programs: date (prints date and time) and whoami (prints the user’s name).

  $ date +%Y-%m-%d  # Date in YEAR-MONTH-DAY format
  2026-02-25
  $ whoami
  tomasi

• We use the ability of shells like Bash to substitute commands using $():

  $ echo "Hello, I am $(whoami) and today is $(date +%Y-%m-%d)"
  Hello, I am tomasi and today is 2026-02-25

A simple VCS (2/3)

• This command creates a backup copy of the files in the current directory:

  tar -c -f "/vcsdatabase/hello_world-$(date +%Y%m%d%H%M%S)-$(whoami).tar" *

• The command creates a .tar file in a /vcsdatabase folder containing all the files of the current directory.

• The file name contains the user’s name and the date; the latter is encoded as a long number (e.g., 20240926155130 for the date 2024-09-26, 15:51:30)

A simple VCS (3/3)

It is always useful to associate a brief comment with a commit. We extend our idea into a shell script called my_vcs.sh:

#!/bin/bash

readonly destpath="$1"
readonly tag="$2"

if [ "$tag" == "" ]; then
    echo "Usage: $0 PATH TAG"
    exit 1
fi

# Create the folder, if it does not exist
mkdir -p "${destpath}"

readonly filename="${destpath}/$(date +%Y%m%d%H%M%S)-$(whoami)-${tag}.tar"
tar -c -f "$filename" *
echo "File \"$filename\" created successfully"

Example

Advantages of a VCS

• We have a backup of the code: if we accidentally delete a source file from the working directory, we can recover it from /vcsdatabase.

• If we realize that a modification does not work, we can restore the previous version.

• We can reconstruct the history of the code development simply by looking at the list of files in /vcsdatabase:

  20240926153856-tomasi-first-release.tar
  20240926155130-tomasi-fix-bug.tar

• If we discover the existence of a bug, we can check backwards to determine when the bug was introduced.

Problems with our VCS (1/4)

• If a VCS is being used, it is probably because the project is complex and has many files.

• Usually, modifications affect one or just a few files at a time.

• But our implementation saves all files every time: what a waste!

• There is also another issue: if the database contained the files

  20240926153856-tomasi-first-release.tar
  20240926155130-tomasi-fix-bug.tar

  and we wanted to understand what the “bug” was and how it was fixed, we would have to compare the files in the latest .tar one by one with their counterparts in the previous .tar to see what changed.

Problems with our VCS (2/4)

• We could write a shell script that invokes tar, saving only the files that were actually modified (for example, by checking the modification date of each file with ls -l).
• But even this is not optimal: a very large file may have changed in just one line, yet we would save the entire file!
• (There are files with tens of thousands of lines of code. The amalgamation of SQLite3 is a C language file with 220,000 lines.)

Problems with our VCS (3/4)

• Complex modifications are usually implemented gradually; for example:

  1. A modification that adds the ability to save work to a file;

  2. A modification that adds the ability to load a file.

  If each of these tasks required a week of work, the programmer might want to perform a backup after completing the first step, before moving on to the second.

• Our system does not allow logically related modifications to be grouped together: each tar file is independent of the others!

Problems with our VCS (4/4)

• We do not provide any control for multiple people working at the same time.

• Consider this situation:

  • A starts from the .tar with the latest version of the code to fix a bug.

  • B starts from the same .tar to add a new feature to the program.

  • A uses my_vcs.sh to save their version with the bug fixed.

  • B uses my_vcs.sh to save their version with the new feature.

  In the end, there will be a .tar file with the bug fixed but without the new feature, and a .tar file with the new feature but where the bug is still present.

Professional VCS

• There are solutions for each of the problems we identified in our VCS.

• Modern VCSs all have these features:

  • They save only the parts of files that have changed (using tools similar to the diff command found in Linux and Mac OS X).

  • They allow logically related commits to be grouped together (e.g., saving/loading files).

  • When multiple programmers work on the same file, they check the consistency of modifications.

Types of VCS

Centralized

The database (our /vcsdatabase directory) resides on a remote computer that all programmers access.

Distributed

The database resides on the local computer; multiple programmers working on the same code each have their own database, which they synchronize with each other periodically (usually with an explicit command).

Some important VCS

Git

• Created by Linus Torvalds, the creator of Linux
• Distributed VCS
• Extremely versatile…
• …but very complex to use!
• Today, it is the standard among VCSs (unfortunately)

Using Git (1/3)

• On Ubuntu/Mint Linux systems, install Git with sudo apt install git

• As soon as it is installed, you need to configure Git with your identity. Run these commands:

  git config --global user.email "YOUREMAIL@BLABLA"
  git config --global user.name "First Last"

  This allows Git to associate your name with the actions you perform on the repository. (Obviously, this is unnecessary if you know you’ll always be the only one working on the repository, but Git is designed to be a collaborative tool.)

Using Git (2/3)

• To create a database in a directory, run

  git init

  This will create a hidden .git directory (equivalent to our /vcsdatabase).

• The first time you run git init, it may ask you to specify your name and email address.

Using Git (3/3)

• When you want to make a commit, you must perform two operations:

  git add FILENAME1 FILENAME2…
  git commit

  The first command prepares the files for “taking the snapshot,” copying them to the staging area, while the second performs the actual snapshot.

• The git commit command opens an editor to enter a description.

How Git Works (1/2)

• Each commit/snapshot is identified by a long hexadecimal number called a hash (e.g., 2f2f2cb36bbf02eaf5629b6295e9a47684c16905).

• Each commit has two associated hashes:

  • Its own hash (obviously!)
  • The hash of the previous commit

• The hash of the latest commit is called HEAD, and it can be viewed using the command

  git rev-parse HEAD

How Git Works (2/2)

When you run git commit, the following happens:

1. git analyzes which files have been modified compared to the last commit (indicated by HEAD);
2. It creates a new commit, saving only the changes relative to the HEAD commit;
3. It saves the HEAD value in the commit as the “previous hash”;
4. It generates a new hash for the commit;
5. It updates HEAD to point to the new hash.

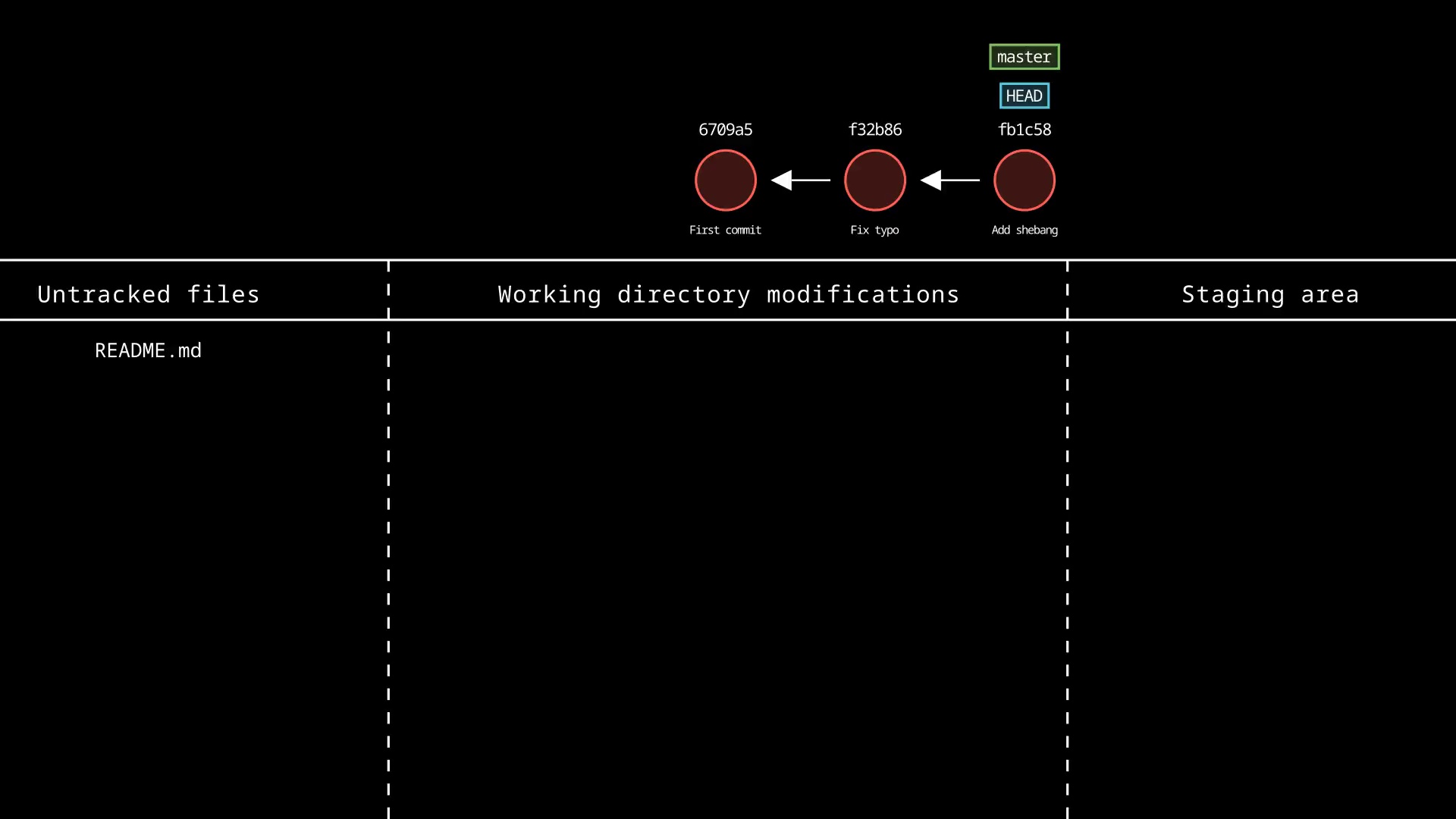

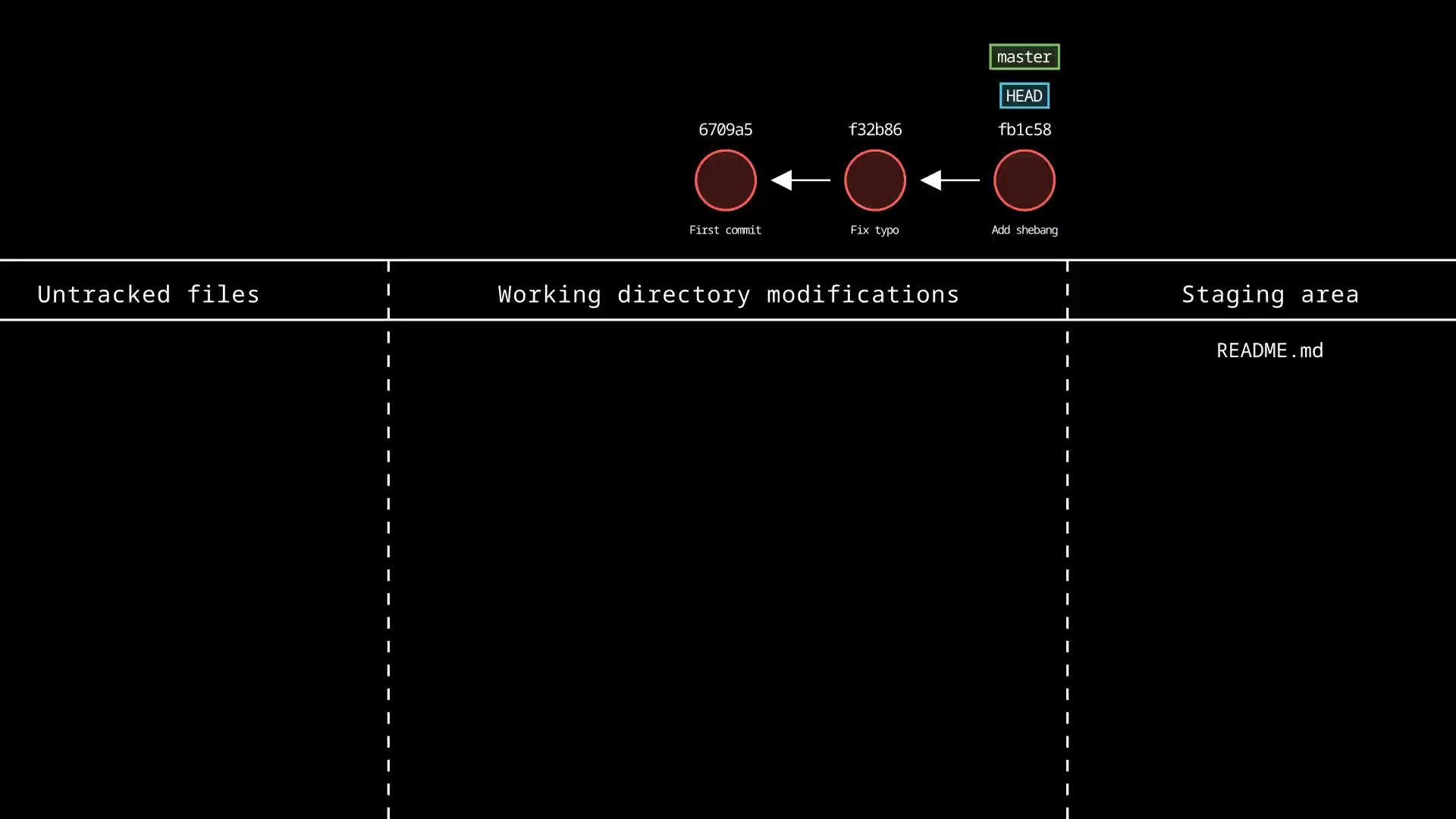

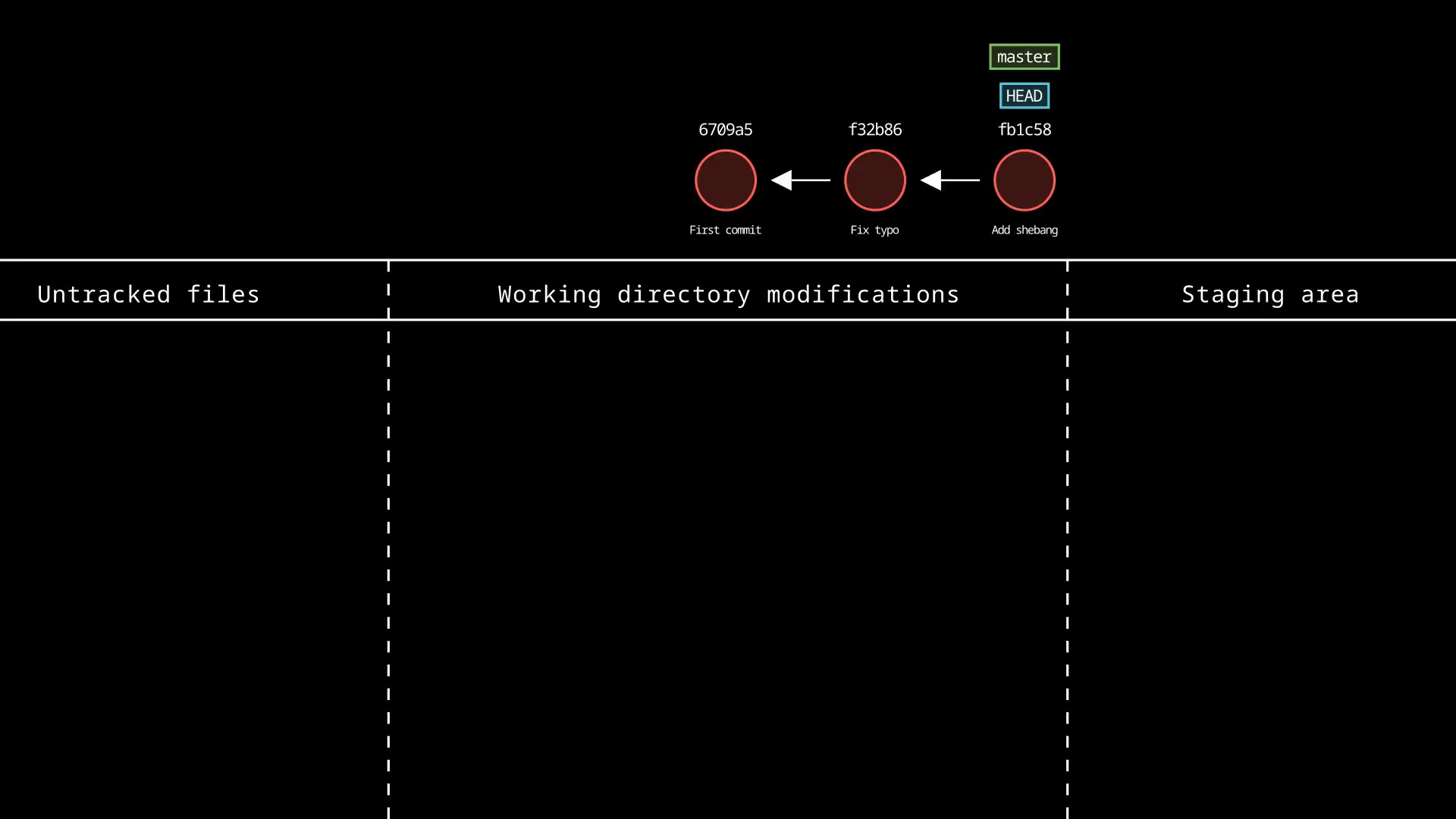

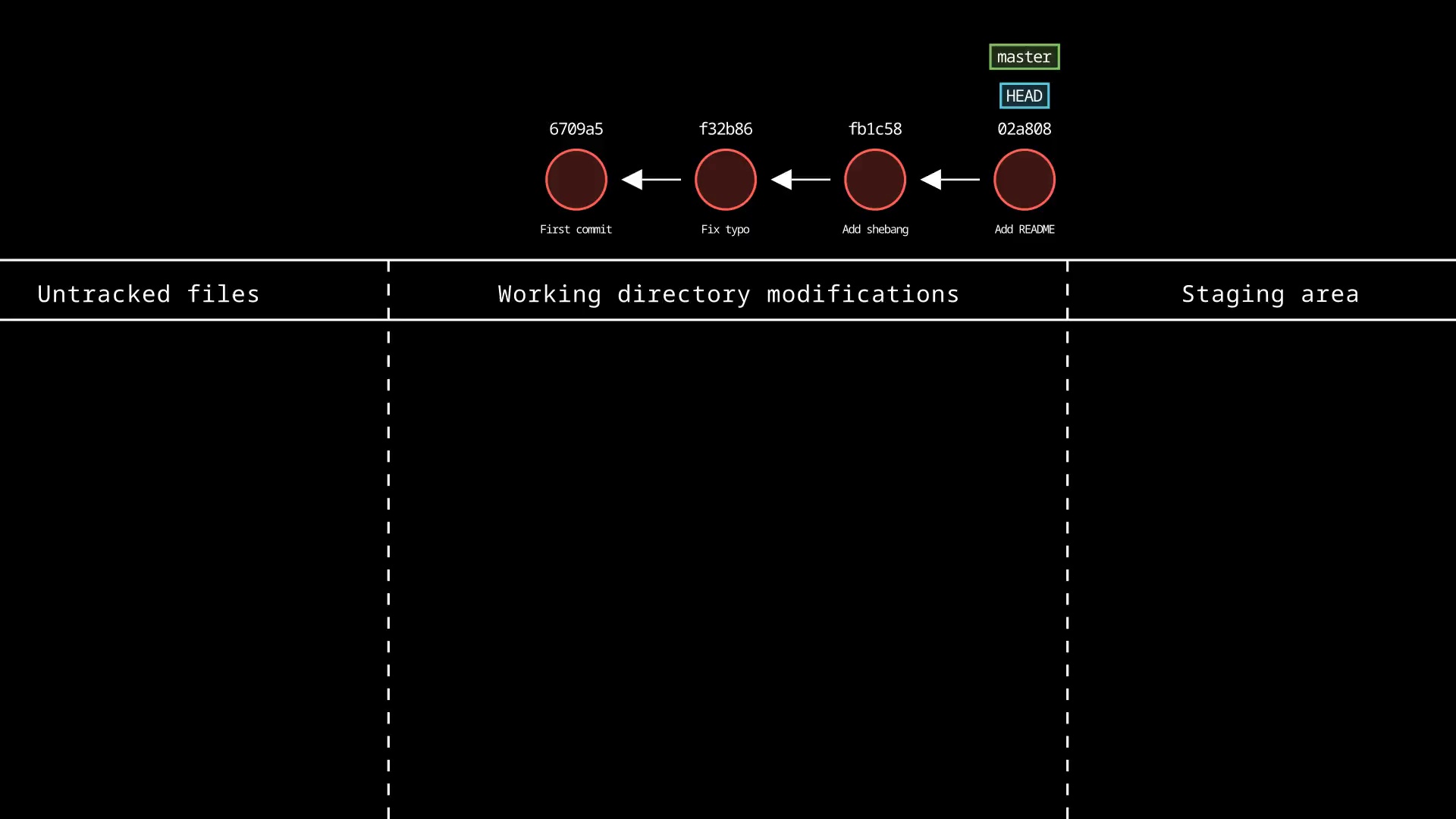

Example

Example

Example

Example

Our example with Git

A few useful commands

• git status shows the status of the repository (extremely useful!)
• git log prints the list of commits starting from the most recent one (HEAD) and going backwards in time
• git diff shows which changes have been made since the last commit
• git mv rename a file
• git rm delete a file

Files to exclude

• Automatically generated files should not be included in a repository (e.g., *.o files, backups, executables, etc.).

• If you create a text file named .gitignore, you can list the files to exclude inside it. For example:

  *~
  *.o
  build/

• The .gitignore file should be added to the repository (git add .gitignore, followed by git commit).

• You can generate this file using the website gitignore.io or your IDE.

GitHub

Distributed Systems

Introduction to GitHub

Syncing Git

Since Git is a distributed system, when you connect to a remote server you need to sync your database. These are the most important commands:

• git clone creates a new directory based on a remote database, and downloads the entire database into .git;
• git pull syncs your database in .git by requesting changes from a remote one;
• git push sends your local changes in .git to a remote database.

How GitHub works

How GitHub works

Git-based hosting software

• GitHub (Microsoft): the most widespread
• CodeForge (Non-profit, EU-based)
• GitLab (GitLab Inc.)
• BitBucket (Atlassian)
• SourceForge (Slashdot Media): the first to have widespread use, now little used
• Self-hosted solutions also exist (Gitea, GitBucket, etc.)

BitBucket

Is GitHub distributed?

GitHub makes Git “a bit more centralized” and “less distributed”:

• Provides a canonical address (https://github.com/name/project);
• Establishes rules on who can commit and when;
• Provides the ability to show a project presentation page;
• …and many other features that we will see in the coming weeks.

It is interesting to note that GitHub could provide all these features based on any other VCS that is not Git!

Git

What to do today

What to do today

1. Create your own account on GitHub (if you don’t already have one)

2. Create an empty project and add .gitignore

3. Write a program (in your chosen programming language) that prints Hello, wold! [without r], make a commit (1) and publish it on GitHub

4. Fix the error in the text and make a commit (2)

5. Add the ability to specify a name and make a commit (3):

   $ hello_world
   Hello, world!
   $ hello_world Maurizio
   Hello, Maurizio!

Using IDEs

• If possible, start practicing today with an integrated development environment (IDE) appropriate for your language
• An excellent choice are the IDEs developed by JetBrains; they are paid, but there are free licenses for students.
• I have created a video that shows how to use Rider; it is useful for those who use other languages to watch it as well, to know what features to look for in IDEs

Hints for C++

Picking a build system

• You are advised not to use Make to build your program! Make is a very old program (it dates back to the ’70s) and is not supported by modern C++

• The most widespread solution to build C++ programs is CMake. Other options are:

  • Meson https://mesonbuild.com/
  • Xmake https://xmake.io/

• My favourite is Xmake, but you are free to pick whatever you want! Only be sure that your development environment support it

Instructions with CMake

• Install CMake; on Linux Debian/Ubuntu/Mint just run

  sudo apt install cmake

• Create an application that produces an executable. Structure the code like this:

  • A CMakeLists.txt file in the root directory
  • A src directory that contains the main.cpp file

• In .gitignore list *.o, the executable name (e.g. hello_world), any backup files (*.bak, *~ depending on the editor you use) and the build directory (or use gitignore.io indicating c++ and cmake).

CMake example for C++

cmake_minimum_required(VERSION 3.12)

# Define a "project", providing a description and a programming language
project(hello_world
    VERSION 1.0
    DESCRIPTION "Hello world in C++"
    LANGUAGES CXX
)

set(CMAKE_CXX_STANDARD 23)   # Pick the standard you like

# Our "project" will be able to build an executable out of a C++ source file
add_executable(hello_world src/main.cpp)

Example: CMake and GNU Make

(Depending on your system, you might need to run ninja instead of make.)

Bibliography for CMake

• Official manual (not very readable, but it’s the most up-to-date reference)
• Professional CMake (C. Scott)
• An Introduction to Modern CMake

Xmake

• A nice alternative to CMake, although not as widespread, is Xmake, which is much easier to use.

• Once you install Xmake (sudo apt install xmake), you can create a new project typing

  xmake create PROJECTNAME

  This will create a folder PROJECTNAME and will add three files: a .cpp file, a xmake.lua file, and a .gitignore file.

Xmake and C++ modules

• Xmake offers a very good support for C++ modules. The following code in xmake.lua will enable C++23 features:

  set_languages("c++23")

  add_rules("mode.debug", "mode.release")

  target("xmake_test")
      set_kind("binary")
      add_files("src/*.cpp", "src/*.cppm")
      set_policy("build.c++.modules", true)

• Support for modules is still experimental in C++ compilers, although the situation is getting better and better. Be sure to use a recent compiler!

Xmake and C++ modules

• Here is a short example of C++ modules. File hello_module.cppm:

  module;
  export module Hello;

  import std;

  export void hello_world() { std::println("Hello, world!"); }

• And here is the file main.cpp (note: no return!):

  import Hello;

  int main() { hello_world(); }

Formatting

• If you use CLion (highly recommended!), you can format the code using the Code/Reformat code command (Shift+Alt+L)

• Otherwise, you can use clang-format; install it with sudo apt install clang-format. If you write this:

  int sum  ( int a,int b    )    {    return a+ b;}

  then clang-format transforms it into

  int sum(int a, int b) { return a + b; }

Formatting

• The clang-format program is used from the command line:

  clang-format -i main.cpp

• If you do not use CLion, it should be possible to configure your editor to automatically invoke clang-format on every save. Some development environments like Qt Creator can do this automatically on every save.

• These tools are very useful for keeping the code clean and clear to read: try to configure them to the best of your ability and learn to use them right from the start.

Hints for C#

Hints

• Create an application and .gitignore using dotnet:

  $ dotnet new console
  $ dotnet new gitignore

  If you use Rider, make sure to enable Git when you create the project.

• Change the message to Hello, wold!

• Compile and run; from the command line, run

  dotnet run

  If you are using Rider, just press Shift+F10.

Example

Code formatting

• To automatically format the code in Rider, run Code/Reformat code (Shift+Alt+L)

• In Visual Studio Code, install the C# package.

• To format the code from the command line, install dotnet-format:

  $ dotnet tool install -g dotnet-format

Hints for Julia

Instructions

• Create a package using the Julia manual (see the example in the next slide)

• Create a hello_world application (in the directory where Project.toml is located) like this:

  #!/usr/bin/env julia

  using Pkg
  Pkg.activate(normpath(@__DIR__))

  using hello_world

  function main()
      hello_world.greet()
  end

  main()

Creating a package

The directory tree

• Once you have completed the exercise, the directory should have this shape:

  $ tree hello_world
  hello_world/
  ├── hello_world
  ├── Project.toml
  └── src
      └── hello_world.jl

• The logic of this structure is that the function library is implemented inside src, while the code related to the executable part (e.g., command-line parameter interpretation) goes into hello_world.

Formatting

• If you use Visual Studio Code, there is the julia-vscode package.

• It should guarantee the ability to format the code, but it is good to verify that it works.

• There is also an independent package, Runic.jl.

Using packages

• Fundamental aspect of Julia!

• They correspond to Python’s virtual environments

• With Pkg.generate you create a new package, with Pkg.activate you activate the package

• The hello_world script shown before activates the package and invokes it:

  # This activates the package in the current directory ("hello_world")
  using Pkg
  Pkg.activate(normpath(@__DIR__))

  # Not calling "activate" above would make this "using" statement fail
  using hello_world

Hints for Java/Kotlin

Hints

• Create a Kotlin or Java application in IntelliJ IDEA:

  • If you use Kotlin, choose “Gradle Kotlin” as the Build system (do not use IntelliJ IDEA’s internal build system! It’s convenient but too limited for our purposes!)
  • Use “Console application” as the template

• The empty application prints Hello World!: first, change the message to Hello, wold!.

• To use Git, you can also rely on IntelliJ’s “VCS” menu (it automatically manages .gitignore). It’s very convenient, sometimes perhaps too much…

Compiling and running

• The directory containing the project has an executable, gradlew, which can be used to produce a distribution in the ./build/distributions directory:

  gradlew assembleDist

• Since it is a very useful function, explore it! Create a distribution of your program and try to understand how to install and use it.

Suggestions

• In Java and Kotlin, there is great reliance on the integrated development environment (IDE). Learn to know IntelliJ IDEA well!

• Get used to regularly invoking the “Code | Reformat code” command (Ctrl+Alt+L).

Hints for Nim/D/Rust

Hints (1/2)

• Create an empty application using your language’s package manager. Nim uses nimble:

  $ nimble init helloworld

• D uses dub:

  $ dub init helloworld

• Rust uses cargo:

  $ cargo init helloworld

• With both Nim and D you will have to answer some questions. If possible, choose the default (but for Nim make sure to specify that you want a binary).

Hints (2/2)

• The application already prints Hello World!: change the message to Hello, wold! (otherwise today’s exercise makes no sense!)

• To compile and run, just use the run command (identical in nimble, dub and cargo):

  $ cd helloworld
  $ nimble run      # Or: dub run, or: cargo run

• For both D and Nim there are plugins for IntelliJ IDEA, JetBrains’ Java IDE. For Rust, you can use RustRover.
