RingInfo

Information about a ring of pixels, i.e., the set of pixels on a Healpix map which have the same colatitude. The type is "mutable", so that one object can begin reused many times without further memory allocations.

The list of fields defined in this structure is the following:

• ring: an integer index, running from

• firstPixIdx: index of the first pixel (using the RING scheme) belonging to this ring

• numOfPixels: number of consecutive pixels within the ring

• colatitude_rad: value of the colatitude for this ring (in radians)

• shifted: Boolean flag; it is true if the longitude of the first pixel in the ring is not zero.

References

See also getringinfo! and getringinfo.

Example

import Healpix
res = Healpix.Resolution(256)

# Show information about ring #10
print(getringinfo(res, 10))

getringinfo(resol::Resolution, ring; kwargs...) :: RingInfo

Return a RingInfo structure containing information about the specified ring. For the list of accepted keyword arguments, see getringinfo!.

getringinfo!(resol::Resolution, ring, ringinfo::RingInfo; full=true) :: RingInfo

Fill the RingInfo structure with information about the specified ring. If full is false, the field colatitude_rad (the most expensive in terms of computation) is set to NaN.

getinterpolRing(resol::Resolution, θ, ϕ) -> (Array{Int,1}, Array{Float64, 1})
getinterpolRing!(resol::Resolution, θ, ϕ, pix, weights) -> (Array{Int,1}, Array{Float64, 1})

Return the indices and the weights of the four neighbour pixels for the given direction (θ, ϕ) in a map with the specified resolution.

If provided, the parameters pix and weights should point to two 4-element arrays of integers and floating-points, respectively. They can be reused in multiple calls to avoid heap allocations and speed up the code.

ang2vec(theta, phi) -> Array{Float64}

Given a direction in the sky with colatitude theta and longitude phi (in radians), return an array of 3 elements containing the x, y, and z components of the one-length vector pointing to that direction.

vec2ang(x, y, z) -> (Number, Number)

Given a vector (not necessarily normalized) whose Cartesian components are x, y, and z, return a pair (theta, phi) containing the colatitude theta and the longitude phi (in radians) of the direction in the sky the vector is pointing at.

ang2pixNest(resol::Resolution, theta, phi) -> Integer

Return the index of the pixel which contains the point with coordinates (theta, the colatitude, and phi, the longitude), in radians, for a Healpix map with pixels in nested order. Note that pixel indexes are 1-based (this is Julia)!

zphi2pixRing(resol::Resolution, theta, phi) -> Integer

Return the index of the pixel which contains the point with coordinates (theta, the colatitude, and phi, the longitude), in radians, for a Healpix map with pixels in ring order. Note that pixel indexes are 1-based (this is Julia)!

ang2pixRing(resol::Resolution, theta, phi) -> Integer

Return the index of the pixel which contains the point with coordinates (theta, the colatitude, and phi, the longitude), in radians, for a Healpix map with pixels in ring order. Note that pixel indexes are 1-based (this is Julia)!

pix2angNest(resol::Resolution, pixel) -> (Float64, Float64)

Given the (1-based) index of a pixel in a Healpix map in nested order, return a pair containing the (colatitude, longitude) angles corresponding to its center, both expressed in radians.

pix2angRing(resol::Resolution, pixel) -> (Float64, Float64)

Given the (1-based) index of a pixel in a Healpix map in ring order, return a pair containing the (colatitude, longitude) angles corresponding to its center, both expressed in radians.

ring2nest(resol::Resolution, ipix) :: Int

Convert the number of a pixel from RING to NESTED scheme.

nest2ring(resol::Resolution, ipix) :: Int

Convert the number of a pixel from NESTED to RING scheme.

pix2ringpos(resol::Resolution, pixel)

Given the (1-based) index of a pixel in a Healpix map in ring order, return a pair of numbers (n, i, j) whose meaning is the following:

• n can be one of the symbols :northcap, :equator, or :southcap, representing the region of the sky
• i is the ring index, from 1 to 4NSIDE - 1
• j is the pixel-in-ring index

pix2xyfNest(resol::Resolution, ipix) :: (Int, Int, Int)

Convert a pixel number into (x, y, face), using NESTED ordering.

pix2xyfRing(resol::Resolution, ipix) :: (Int, Int, Int)

Convert a pixel number into (x, y, face), using RING ordering.

xyf2pixNest(resol::Resolution, ix, iy, facenum) :: Int

Convert (x, y, face) into a pixel number, using NESTED ordering.

xyf2pixRing(resol::Resolution, ix, iy, facenum) :: Int

Convert (x, y, face) into a pixel number, using RING ordering.

xyf2loc(x, y, face) -> (z, phi, sintheta, have_sintheta)

Given a position encoded as XYF, return the tuple containing $z = cos(\theta)$, \phi, and optionally an accurate estimate for $sin(\theta)$ (if have_sintheta is true), where $\theta$ is the colatitude and $\phi$ is the longitude, both expressed in radians.

pix2zphiRing(res::Resolution, pix) -> (z, phi)

Compute the angular coordinates z = cos(θ), ϕ of the center of the pixel with number pix, assuming the RING numbering scheme for pixels. Caution: this method is inaccurate near the poles at high resolutions.

pix2zphiNest(res::Resolution, pix) -> (z, phi)

Compute the angular coordinates z = cos(θ), ϕ of the center of the pixel with number pix, assuming the NEST numbering scheme for pixels. Caution: this method is inaccurate near the poles at high resolutions.

ringAbove(res::Resolution, z) -> (ring_number)

Return the number of the next ring to the north of z = cos(θ). If z lies north of all rings, the function returns 0.

ring2z(res::Resolution, ring) -> z

Return the value of z = \cos(\theta) for the given ring.

numOfRings(resol::Resolution)
numOfRings(nside::Integer)

Return the number of horizontal rings in a Healpix map.

max_pixrad(res::Resolution, ring)
max_pixrad(res::Resolution)

Return the maximum angular distance (in radians) between a pixel center and any of its corners. If ring is specified, the result applies to all the pixels of the given ring; otherwise, all the pixels on the sphere are considered.

boundariesRing(resol::Resolution, pix, step, T::Type{<:Real})
boundariesRing!(resol::Resolution, pix, step, buf::Matrix{T}) where {T <: Real}

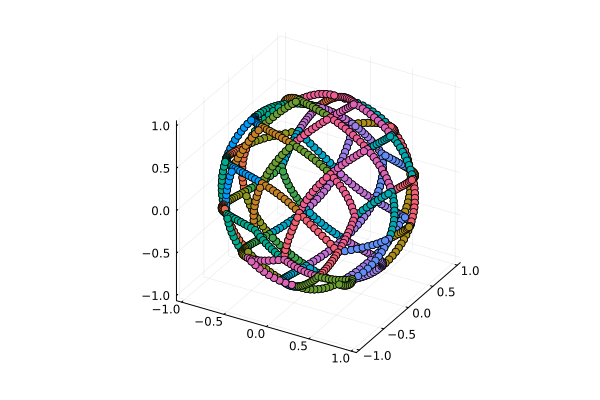

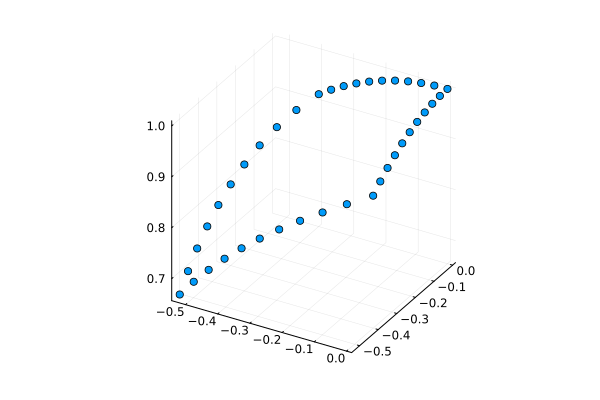

Compute a set of directions (3D vectors) along the boundaries of a given pixel in the RING scheme at some resolution.

The function boundariesRing returns a $N \times 3$ matrix of type T containing $N$ vectors pointing towards the border of the pixel with index pix in RING scheme. Each edge of the pixel contains step points, and, as every pixel has a diamond-like shape with four edges, the number $N$ is equal to 4 * step.

If you plan to call this function again and again, you should allocate your own matrix with the results and call boundariesRing!, which accepts the parameter buf where the result will be stored. The shape of this matrix must be (4step, 3), for instance, and its element can be left undefined:

step = 10
buf = Matrix{Float64}(undef, 4step, 3)
boundariesRing!(res, pixidx, step, buf)  # This sets `buf`

Examples

Here we show how to use boundariesRing and boundariesRing! together to avoid allocating a matrix twice.

julia> matr = boundariesRing(Resolution(16), 534, 2, Float16)
8×3 Matrix{Float16}:
 0.3535  -0.6123  0.707
 0.3525  -0.6353  0.687
 0.3513  -0.657   0.6665
 0.3762  -0.664   0.646
 0.4014  -0.6694  0.625
 0.4084  -0.645   0.646
 0.414   -0.6196  0.6665
 0.3843  -0.6167  0.687

julia> boundariesRing!(Resolution(16), 535, 2, matr)  # Reuse `matr`

julia> matr
8×3 Matrix{Float16}:
 0.4158  -0.5723  0.707
 0.415   -0.596   0.687
 0.414   -0.6196  0.6665
 0.4397  -0.624   0.646
 0.465   -0.627   0.625
 0.4697  -0.602   0.646
 0.473   -0.576   0.6665
 0.4446  -0.5747  0.687

boundariesRing!(resol::Resolution, pix, step, buf::Matrix{T}) where {T <: Real}

See the documentation for boundariesRing.
