Query functions

It is often useful to perform calculations on a set of adjacent pixels in a map. Asking for the indices of pixels within a given region of the sphere is called a query, and this kind of function can be implemented efficiently using the Healpix scheme.

The functions that query a set of pixels satisfying some proximity criteria are the following:

queryDiscRing
queryStripRing

Let's show an example about how to use queryDiscRing, which returns a list of the indexes of the pixels that fall within some angle from a direction on the sky sphere:

resol = Resolution(32)
(theta, phi) = (1.3, 0.7)
radius = deg2rad(10.0)
pixidx = queryDiscRing(resol, theta, phi, radius)

92-element Vector{Int64}:
 3534
 3535
 3536
 3661
 3662
 3663
 3664
 3665
 3788
 3789
    ⋮
 5199
 5200
 5201
 5325
 5326
 5327
 5328
 5455
 5456

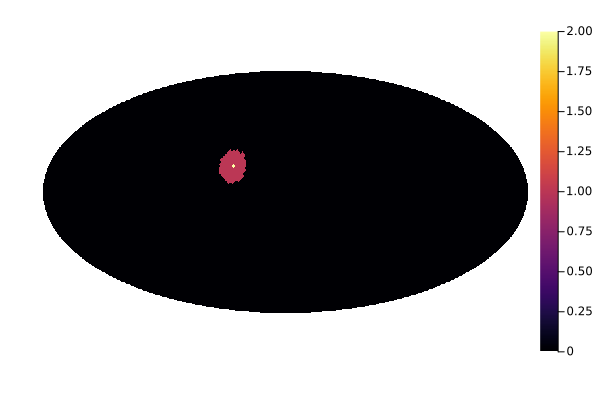

We can visualize where these pixels are using a Mollweide projection:

m = HealpixMap{Float32, RingOrder}(resol.nside);
m[pixidx] .= 1;

m[ang2pix(m, theta, phi)] = 2  # Highlight the pixel at the center

using Plots
pyplot()  # hide
plot(m)
savefig(joinpath("images", "querydisc.png")) # hide

The function queryDiscRing accepts an optional keyword fact that specifies the resolution to be used in computing the result; it can be any positive integer, and the actual resolution is fact * NSIDE.

Reference

Healpix.queryDiscRing — Function

queryDiscRing(resol::Resolution, theta, phi, radius; fact=0)

Return a list of the indices of those pixels whose centers are closer than radius to direction (theta, phi). The three angles radius, theta, and phi must be expressed in radians.

If fact is nonzero, it must be a positive integer; it requires to carry the computation at a resolution fact * nside.

source

Healpix.queryStripRing — Function

queryStripRing(resol::Resolution, theta1, theta2; inclusive=true)

Return a range of the indices of pixels that overlap with the colatitude range [theta1, theta2]. If inclusive is set to false, only those pixels whose centers lie within the colatitude range are returned.

This function assumes the RING scheme, because in this case, the indexes of the pixels cover a range without gaps. Therefore, the function returns a range instead of a list, as it is quicker and occupies far less memory.

source
